Printed circuit board in the instrument cluster cover (Discovery 1)

1. Remove the instrument cluster.

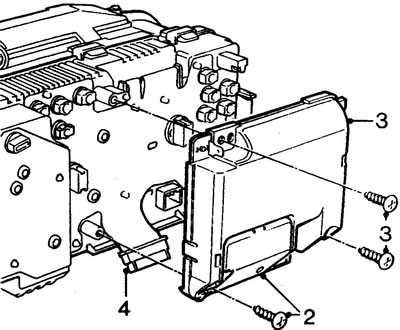

2. Unscrew the screw and remove the lower hatch from the block cover.

3. Unscrew the 2 screws securing the cover and disconnect the wiring connector.

4. Installation is carried out in reverse order.

4. Installation is carried out in reverse order.

(Data taken from the website: «LRman.ru»)
