Front suspension — device (Discovery 1)

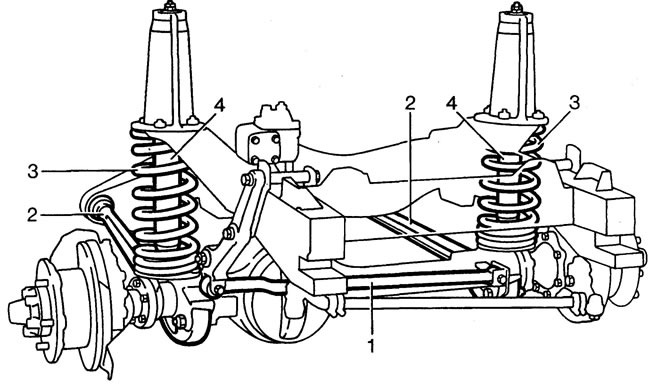

1 - Panhard rod, 2 - reaction rod, 3 - spring, 4 - shock absorber.

The front axle is held horizontally by two torque rods and vertically by a Panhard rod. Each wheel is equipped with long-travel shock absorbers and coil springs.

Caution: During repairs, reinstallation of self-locking nuts is not permitted. Install only new nuts.
