Radio receiver — removal and installation (Discovery 1)

1. Disconnect the battery.

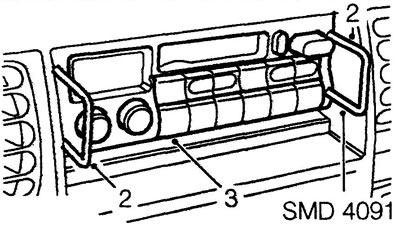

2. Insert SMD 4091 strippers or similar wire staples into the radio receiver sockets.

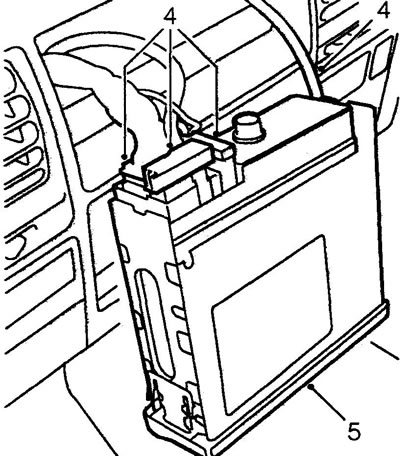

3. Remove the radio and remove the pullers.

4. Disconnect the wiring connector and antenna.

See the source on the website www.lrman.ru

5. Remove the radio.

6. Installation is carried out in reverse order.
