Neutral Position Resistance — Manual Transmission (Discovery 1)

Check - Figure 32

Technical conditions

Contacts	Lever position	Voltage
34 and mass	Besides "N"	1.5-3.5 V

Make sure the ignition is off.

Without disconnecting the electrical connector of the electronic control unit, remove the protective cover.

Turn on the ignition.

Measure the voltage between the wiring connector terminal and ground.

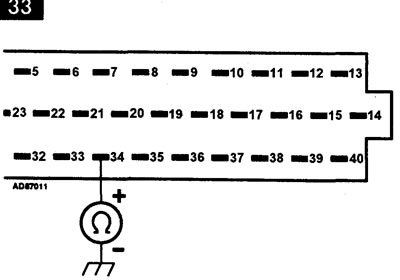

Resistance Check - Figure 33

Technical conditions

Contacts	Resistance
34 and mass	480-510 Ohm

Note: When taking measurements, observe the specified polarity of the ohmmeter connection.

Make sure the ignition is off.

Disconnect the electrical connector from the electronic control unit.

Measure the resistance between the wiring connector contact and ground.
